Figma Variables — Fixing Skipped Tokens (Border Radius)

Case: Border-radius tokens defined in TS as composed values (e.g., 0 2 0 2) don’t export as a single variable. We’ll create number variables directly in Figma, bind them to the Team component, and (optionally) support brand/mode variants.

Goal: Rebuild corner radius control inside Figma using Number variables (one for all corners, or one per corner) so the Team component adapts across brands/modes without TS changes.

Context: Composed border-radius tokens with multiple corner values are skipped on export. In Figma, we’ll create Number variables for radius and bind them to the Team component’s corners.

Step‑by‑step​

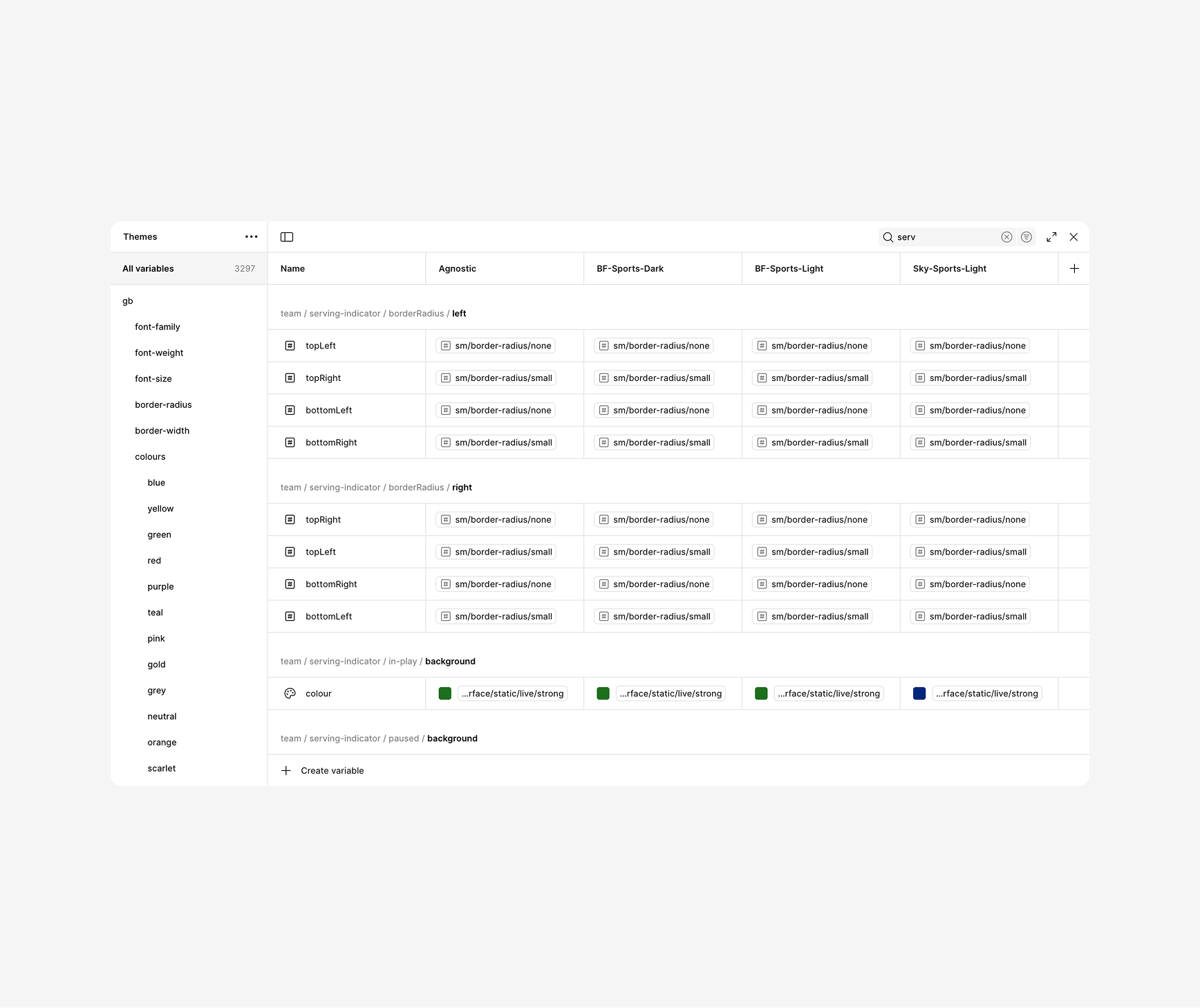

1. Create the radius variables in Figma​

  1. Open Variables panel.
  2. Decide your control model:
    • Uniform radius (one var for all corners), or
    • Independent corners (four vars: TL, TR, BR, BL).
  3. Click + Create variable:
    • Uniform option:
      • team/serving-indicator/border-radius → Type: Number → set value (e.g.,2)
    • Independent option (right + left sides):
      • team/serving-indicator/borderRadius/left/topleft → Number → 0
      • team/serving-indicator/borderRadius/left/topRight → Number → 2
      • team/serving-indicator/borderRadius/left/bottomRight → Number → 2
      • team/serving-indicator/borderRadius/rleft/bottomLeft → Number → 0
      • team/serving-indicator/borderRadius/right/topleft → Number → 2
      • team/serving-indicator/borderRadius/right/topRight → Number → 0
      • team/serving-indicator/borderRadius/right/bottomRight → Number → 0
      • team/serving-indicator/borderRadius/right/bottomLeft → Number → 2
Export Button
note

Use a uniform variable if most corners match. Use four variables if the component design is asymmetric.

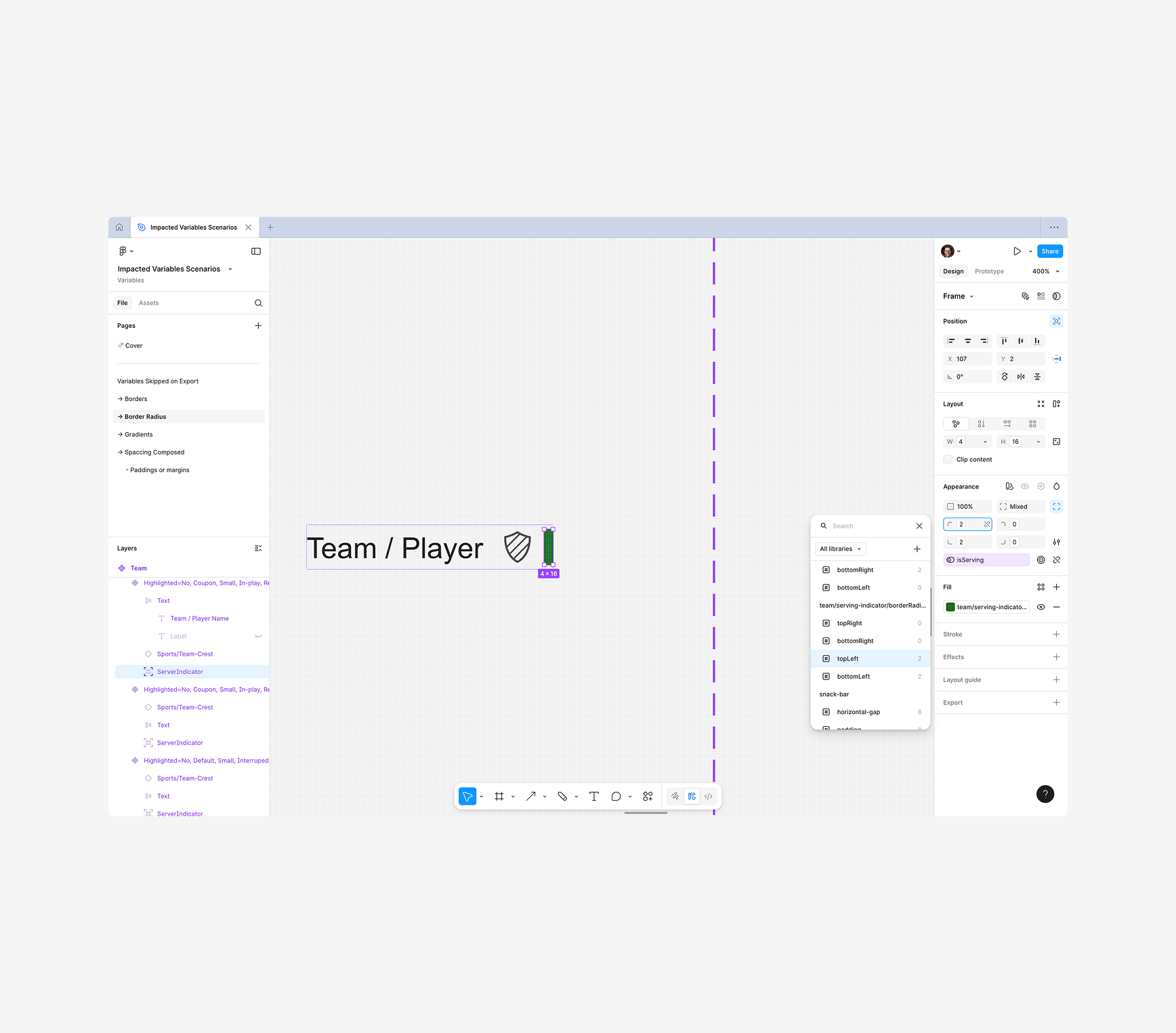

2. Apply / Bind variables on the Team component​

  1. Select the Team component’s main shape/container.
  2. In the right sidebar Corner radius field:
    • For uniform: click the variable icon and choose {team/serving-indicator/border-radius}.
  3. For independent corners:
    • Click Independent corners (the 4-corner icon) to unlock per-corner fields.
    • Bind each field (e.g. left side):
      • TL → {team/serving-indicator/borderRadius/left/topleft}
      • TR → {team/serving-indicator/borderRadius/left/topRight}
      • BR → {team/serving-indicator/borderRadius/left/bottomRight}
      • BL → {team/serving-indicator/borderRadius/rleft/bottomLeft}
Export Button
note

Keep the variable names visible in the hover tooltip to show the bindings during the recording.

3. Test brand & mode switching​

  1. Open Variables panel
  2. Watch the Team component corners update automatically.
note

Because these are number variables, you can drive uniform or per-corner radii and scale them by mode or brand.

Here is the full flow to resolve the issue with skipped / composed tokens when exported from TS to Figma Variables.

4. Publish & PR​

  1. Don`t forget to always publish the updated Variables library.
  2. Also publish the updated Component library.
  3. If you are already working in a branch, Open a PR with all the token changes and the new exported variables
note

When border-radius tokens are skipped on export, create Number variables directly in Figma — one for all corners or one per corner — and bind them to the Team component. Switch modes or brands to prove it scales without touching Tokens Studio.
