Figma Variables — Fixing Skipped Tokens (Gradients)

Case: Gradient tokens are skipped on export. We’ll rebuild the gradient directly in Figma using colour variables for each stop, then bind the gradient as a Fill Style on the component.

Goal: Recreate a gradient in Figma using variable-linked colour stops so it responds to brand and mode (light/dark) without touching TS.

Context: Gradients are composite tokens with multiple colour stops and positions, so they’re skipped on export. In Figma, we’ll recreate the gradient by linking each colour stop to a colour variable, then save it as a Fill Style and apply it to Bottom Bar component.

Step‑by‑step​

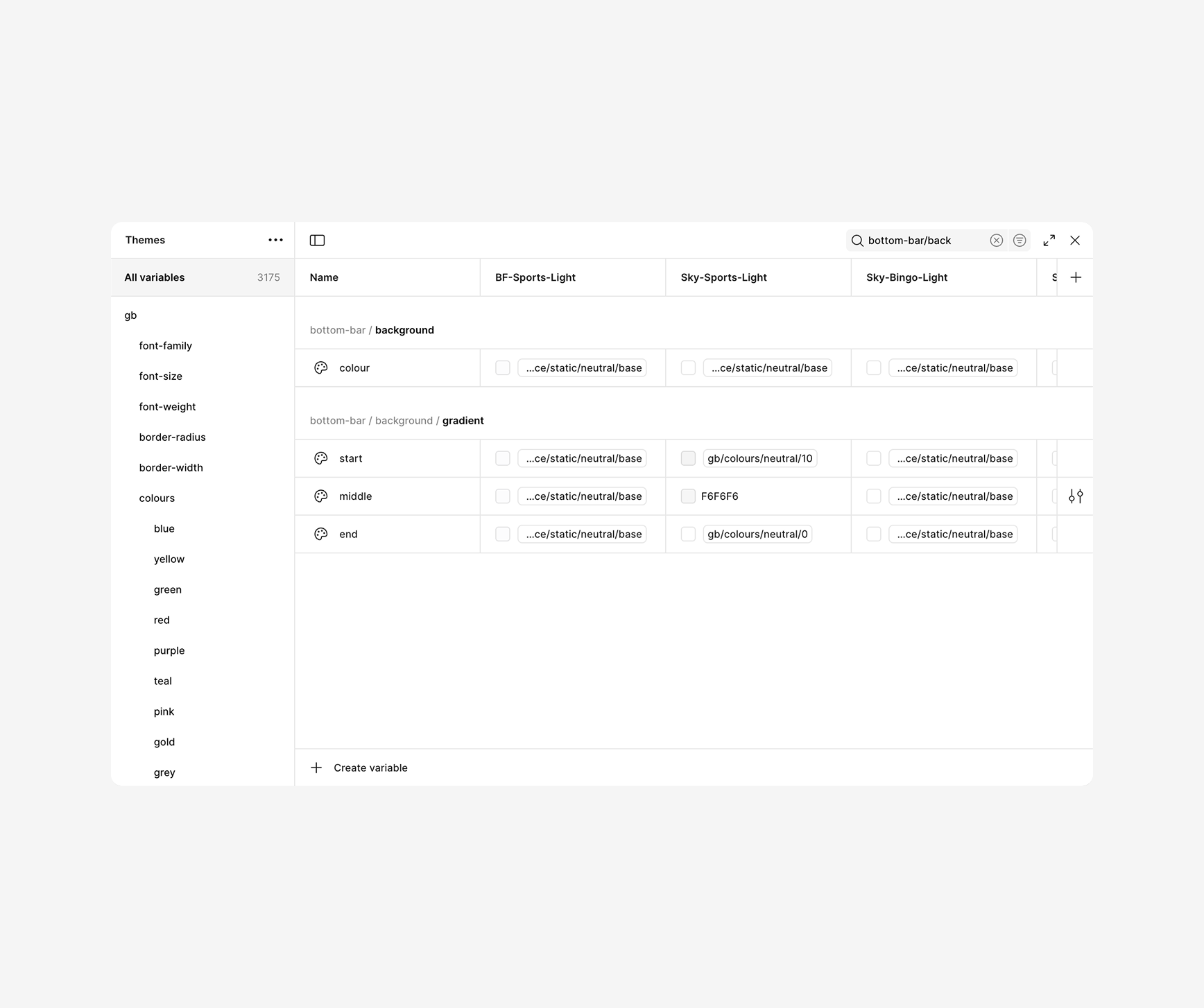

1. Create the colour variables for the gradient stops​

  1. Open Variables panel in Figma (Right sidebar → Local variables).
  2. Click + Create variable for each stop you need:
    • Example for a 3-stop gradient:
      • bottom-bar/background/gradient/start
      • bottom-bar/background/gradient/middle
      • bottom-bar/background/gradient/end
  3. Set Type = colour for all variables.
  4. Enter initial values (e.g., start = {gb.colours.neutral.10}, middle = #F6F6F6, end = {gb.colours.neutral.0})
Export Button
note

Gradients can’t be variables themselves, but each stop colour can. That’s the trick.

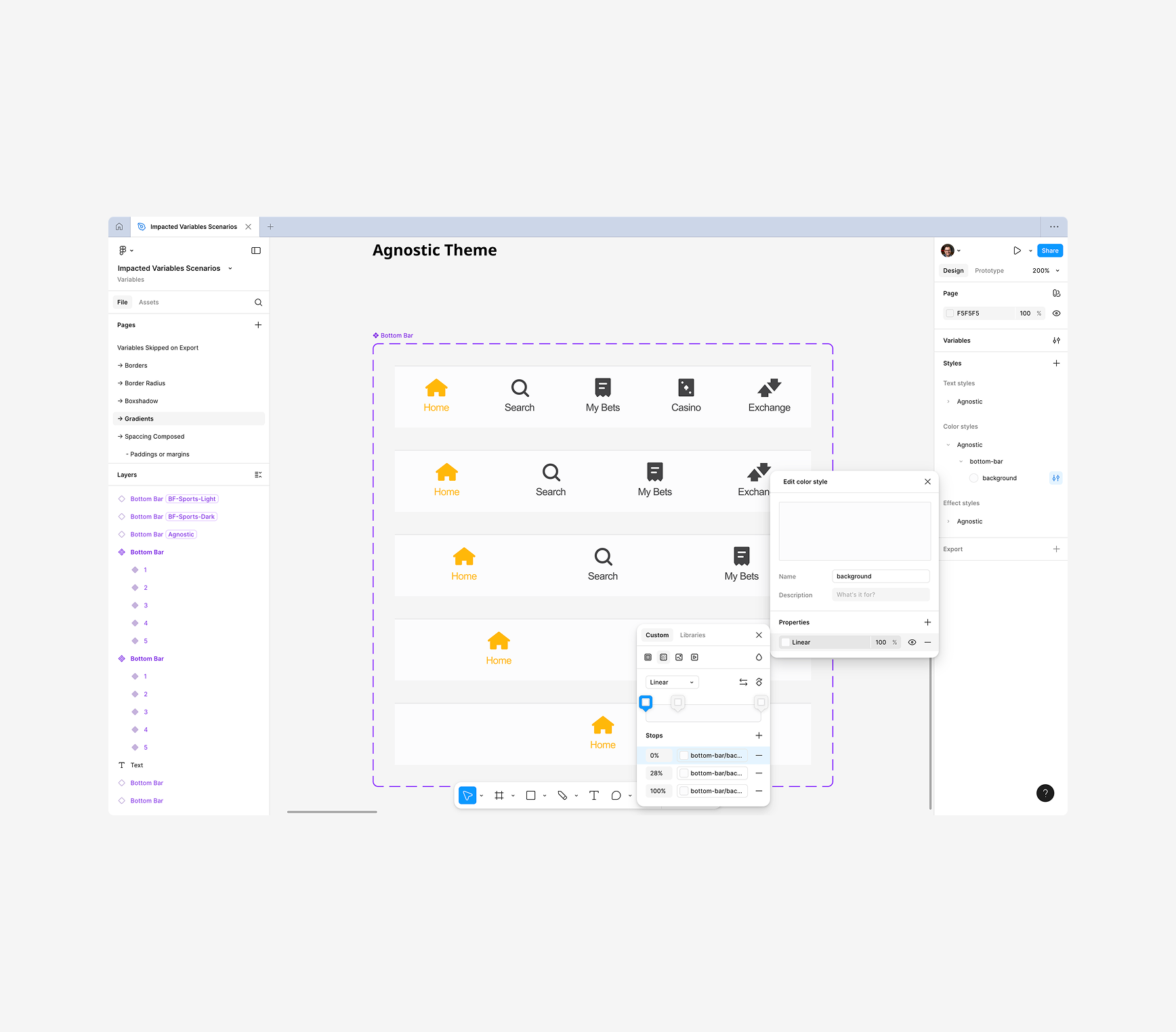

  1. Draw a temporary rectangle (or select the Bottom Bar container if you want to preview live).
  2. In Fill, choose Linear Gradient (or Radial/Angular as needed).
  3. Click each gradient stop and link its colour to the variables you created:
    • Stop 1 → {bottom-bar/background/gradient/start}
    • Stop 2 → {bottom-bar/background/gradient/middle}
    • Stop 3 → {bottom-bar/background/gradient/end}
  4. Adjust angle and stop positions visually. - (Note) Angle and positions are not variable-bindable in Figma; only the stop colours are. 5.Turn this fill into a reusable Style: - Click the four dots next to Fill → Create style - Name it clearly, e.g.: bottom-bar.background.colour
Export Button
note

We’re storing the shape of the gradient (angle & positions) in the Style, and the colours in Variables.

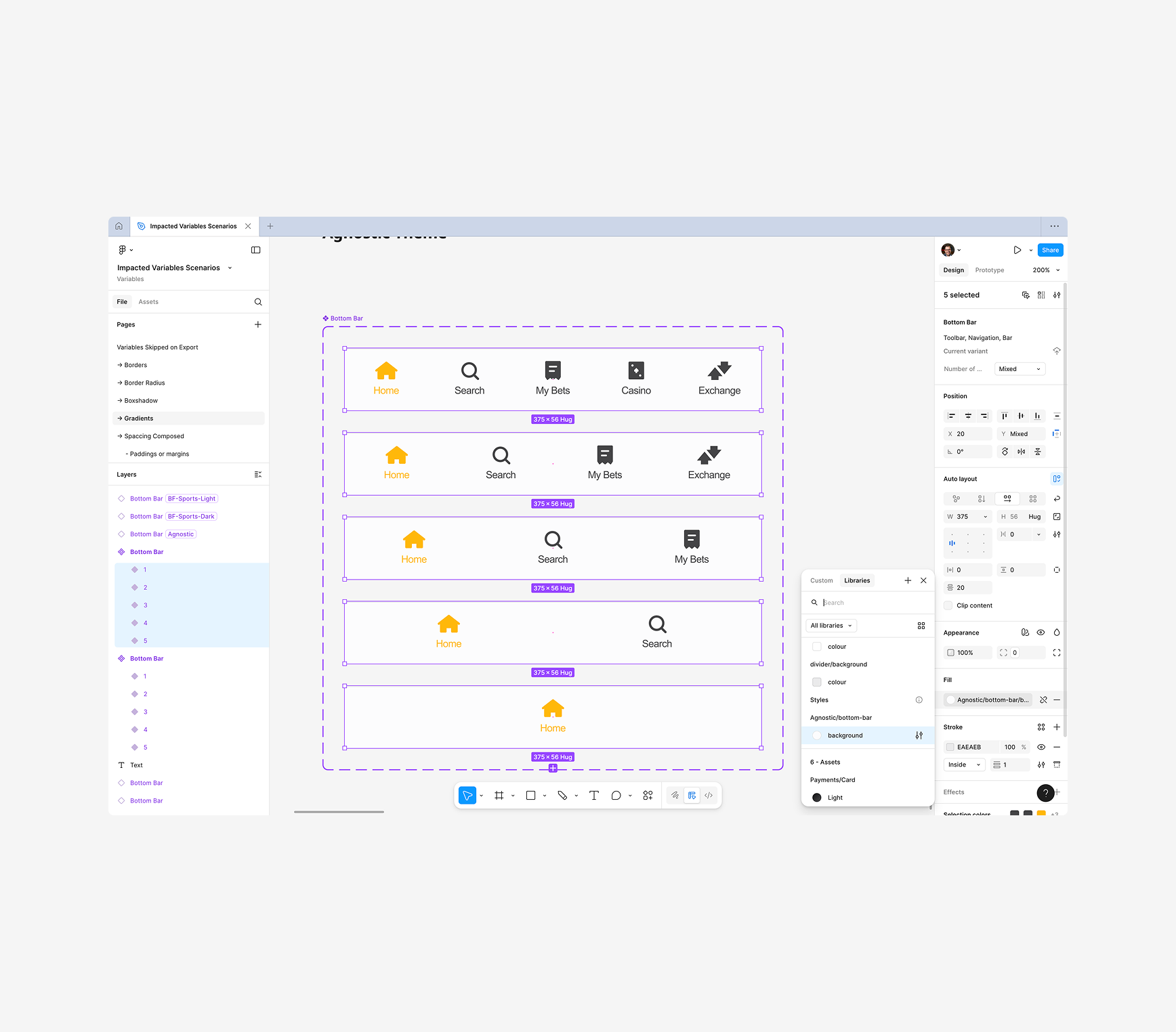

3. Apply to the component​

  1. Select your Bottom Bar component’s background layer (or container).
  2. In Fill, select your new style: Agnostic/bottom-bar/background.
  3. Verify the fills update. If the component has nested parts, apply the Style on the correct layer.
Export Button

4. Test brand & mode switching​

  1. Open Variables panel.
  2. Watch the gradient update as the underlying stop colour variables change.
  3. If you use a Density or Theme mode set, you can preview those too.

Optional advanced:

  • Add alpha variations by setting stop colours with opacity (e.g., rgba in the variable value).
  • If you need a 3- or 4-stop gradient, just create more variables:
    • bottom-bar/background/gradient/stop1, stop2, stop3, stop4, and link each stop.

5. Notes & constraints​

  • Gradients cannot be variables today; colours can.
  • Angle/positions are Style-level, adjusted manually (per style).
  • Keep names consistent so designers can discover and reuse them:
    • Variables: bottom-bar/background/gradient/start, bottom-bar/background/gradient/end
    • Style: Agnostic/bottom-bar/background

Here is the full flow to resolve the issue with skipped / composed tokens when exported from TS to Figma Variables.

6. Publish & PR​

  1. Don`t forget to always publish the updated Variables library.
  2. Also publish the updated Component library.
  3. If you are already working in a branch, Open a PR with all the token changes and the new exported variables
